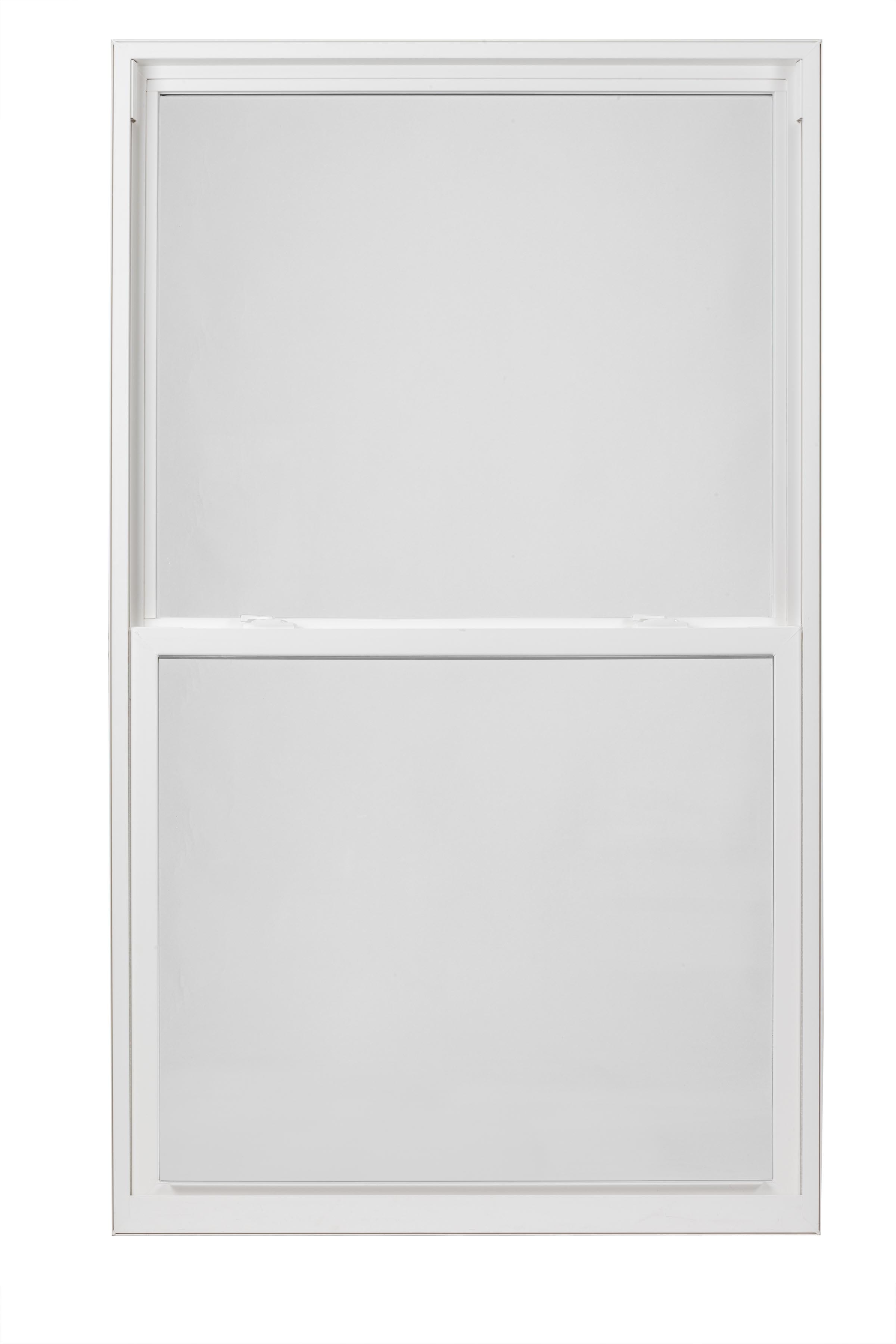

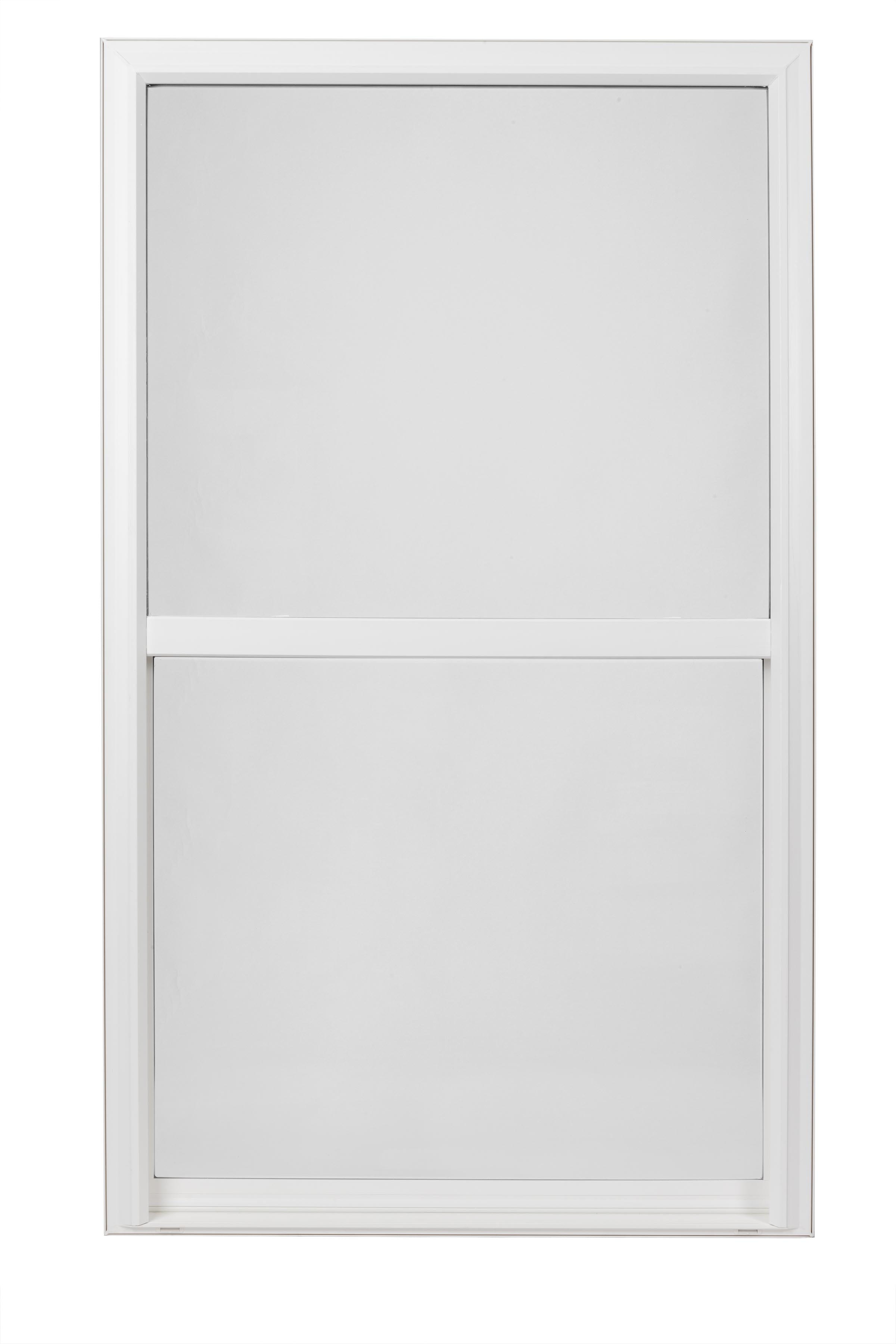

Single Hung

An exceptional single hung with beauty, strength and value.

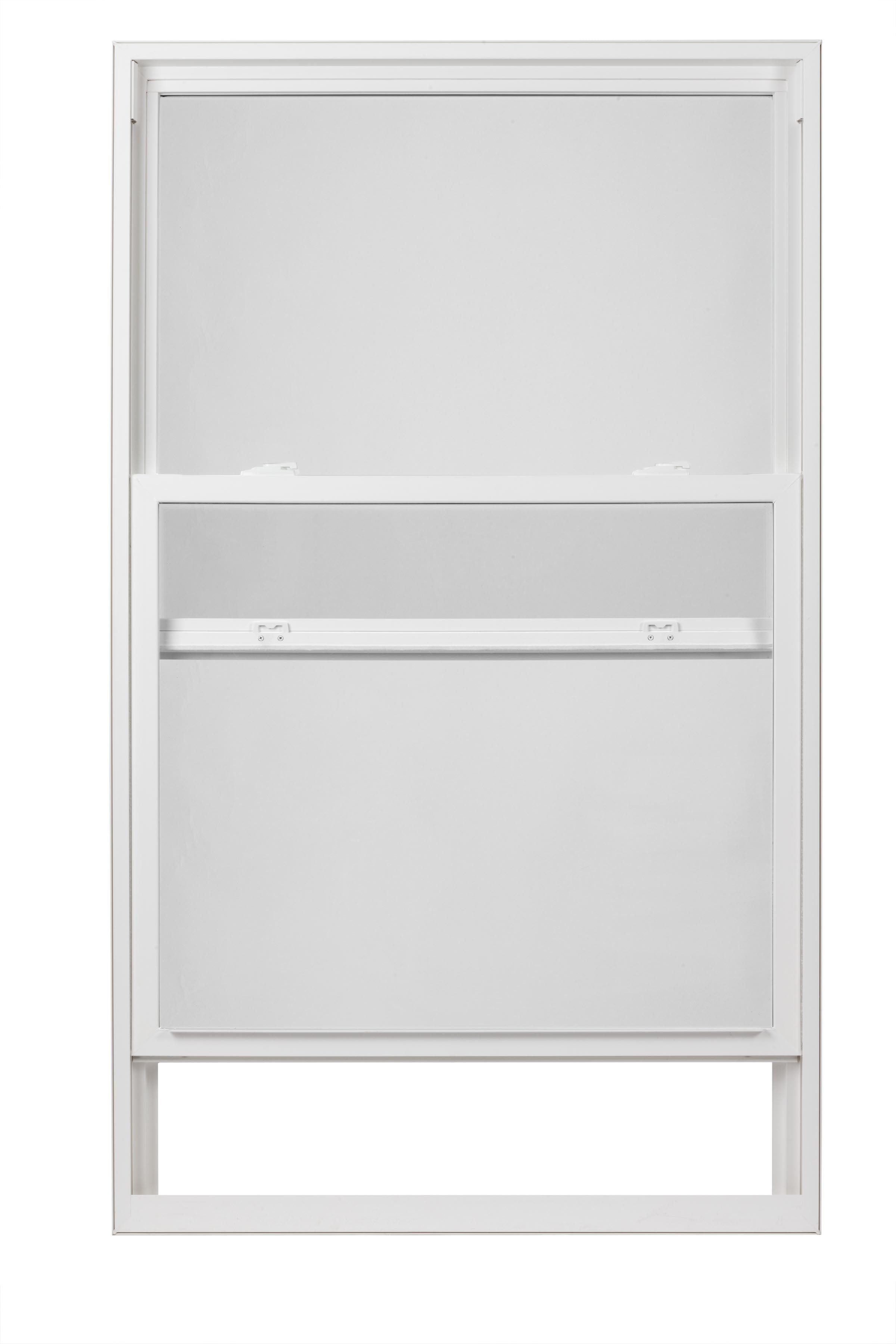

The single hung window design provides a single operable lower sash that may be raised for ventilation, tilted inward and removed for easy cleaning. The top sash is fixed for improved energy efficiency.

Features
  • Single Hung with matching XO Horizontal Sliders and Picture Window.
  • Fusion-welded frame and sash enhances structural integrity and weather resistance.

  • 3-1/4″ frame depth available in new construction and replacement configurations.

  • For ease of new construction installation, the frame is available with a pre-punched nailing fin.

  • Subtle accessory grooves come standard so you can securely accommodate trim and other attachments. Multiple accessories available.

  • Accepts 5/8″, 11/16″ and 7/8″ insulated glass.

  • The sill is engineered for high water performance (DP50).

  • A low sight line mainframe with a beveled exterior offers a pleasant, aesthetic design.
  • Available structural mull system adds additional strength to multiple window combinations when required.

  • Dual weatherstripping at stiles, interlock, and sill provides extra protection against air-infiltration and enhances the energy efficiency.

  • Available grid styles:
    • Colonial
    • Closed or Open Prairie
    • Cottage
    • Diamond (special order)
  • Standard 5/8″ flat mutton bar in white or beige.
  • Available contoured mutton bar in white or beige.
  • Light Commercial rated.
  • Sizing:
    • Minimum: 14″ W | 22″ H
    • Maximum: 48″ W | 84″ H
    • Maximum OA UI: 132″

Example Grid Styles

Full Colonial

Half Colonial

3 Over 1

Open Prairie

Closed Prairie

Cottage
