Casement

An exceptional casement with beauty, strength and value.

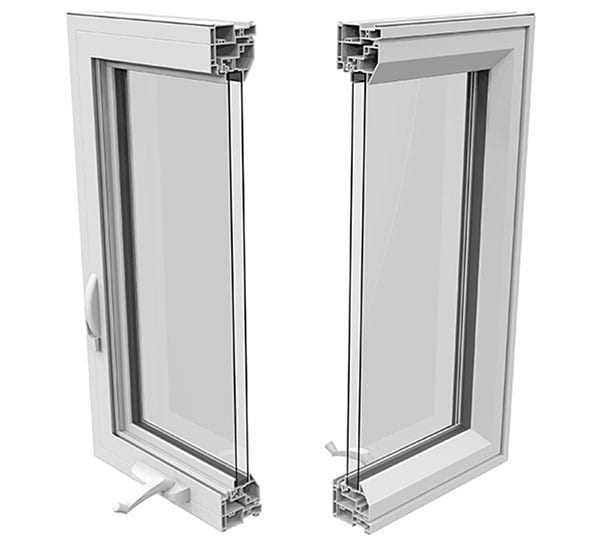

The Casement window design provides a single crank-operable sash that can be made to open outward toward either the left or right. The nature of the single sash weather seal latching system on the casement window delivers the best energy efficiency among the family of operable windows.

Features
  • Casement with matching Single Hung, Double Hung, XO Horizontal Sliders, and Picture Window.
  • Fusion-welded frame and sash enhances structural integrity and weather resistance.

  • 3-1/4″ frame depth available in new construction and replacement configurations.

  • For ease of new construction installation, it comes with a pre-punched nailing fin.

  • Subtle accessory grooves come standard so you can securely accommodate trim and other attachments. Multiple accessories available.

  • Accepts 5/8″, 11/16″ and 7/8″ insulated glass.

  • The sill is engineered for high water performance (DP50).

  • A low sight line mainframe with a beveled exterior offers a pleasant, aesthetic design.
  • Available structural mull system adds additional strength to multiple window combinations when required.

  • Available grid styles:
    • Colonial
    • Closed or Open Prairie
    • Plaza/Cottage
    • Diamond (special order)
  • Standard 5/8″ flat mutton bar in white or beige.
  • Available contoured mutton bar in white or beige.
  • Light Commercial rated.
  •  Sizing:
    • Minimum: 17.5″ W | 31.5″ H
    • Maximum: 36″ W | 72″ H
    • Maximum OA UI: 106.5″

Example Grid Styles

Colonial

Prairie

Cottage
